NameServer 路由注册、故障剔除

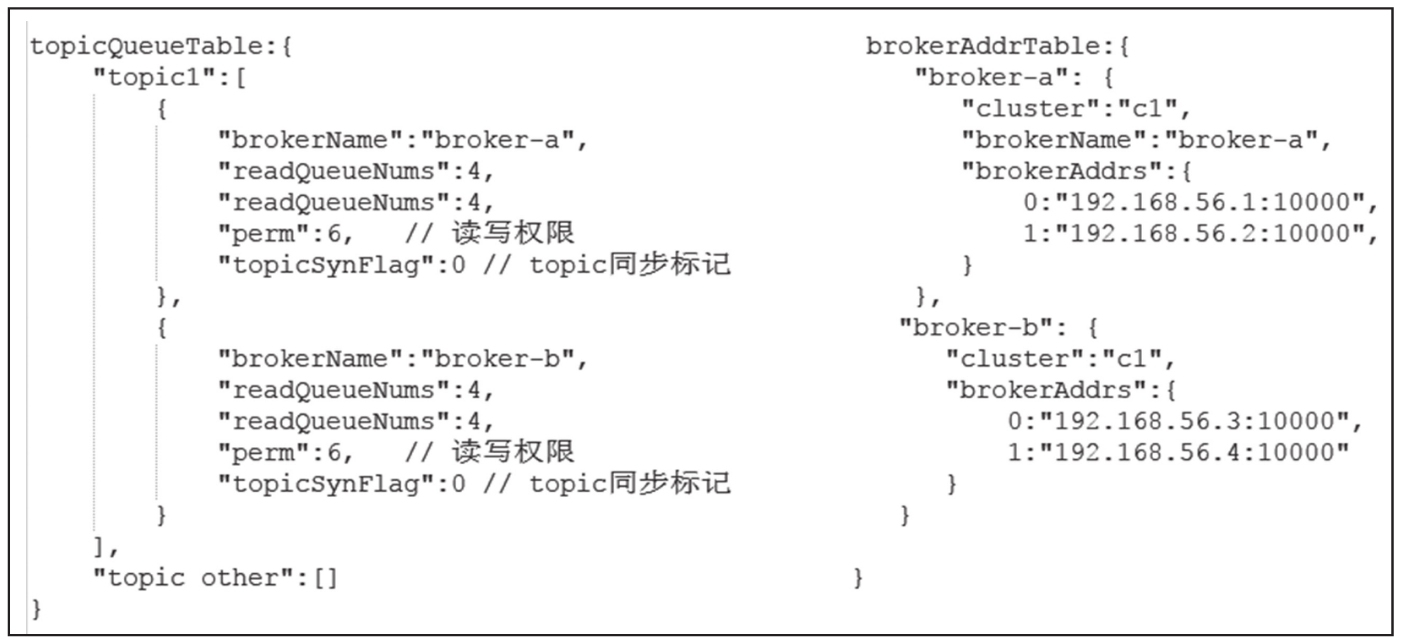

private final HashMap<String /* topic */, List<QueueData>> topicQueueTable;
private final HashMap<String /* brokerName */, BrokerData> brokerAddrTable;
private final HashMap<String /* clusterName */, Set<String /* brokerName */>> clusterAddrTable;

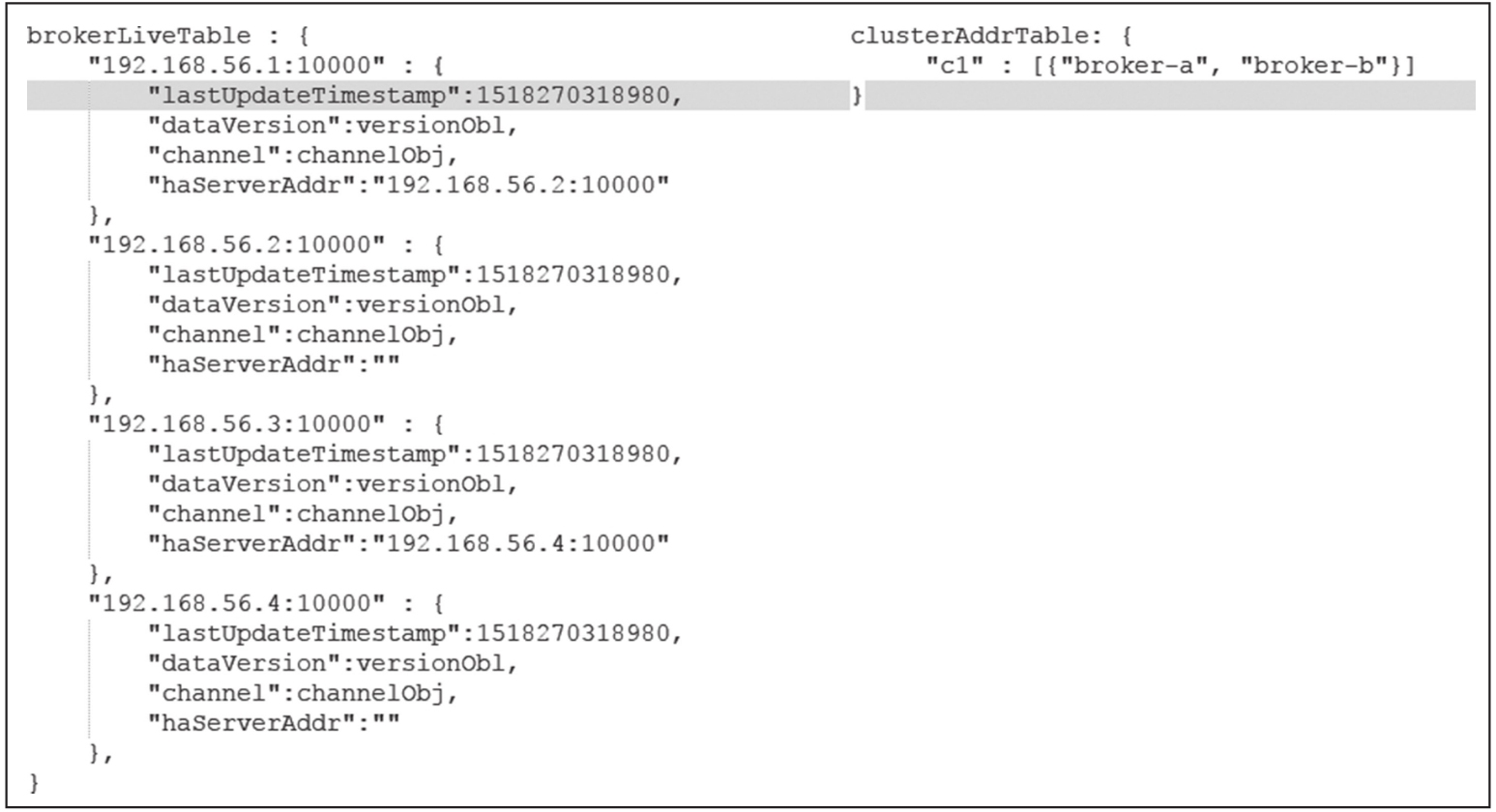

private final HashMap<String /* brokerAddr */, BrokerLiveInfo> brokerLiveTable;
private final HashMap<String /* brokerAddr */, List<String> /* Filter Server */> filterServerTable;
javaCopied!

this.lock.writeLock().lockInterruptibly();
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
if (null == brokerNames) {
    brokerNames = new HashSet<String>();
    this.clusterAddrTable.put(clusterName, brokerNames);
}
brokerNames.add(brokerName);
javaCopied!

BrokerData brokerData = this.brokerAddrTable.get(brokerName);
if (null == brokerData) {
    registerFirst = true;
    brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
    this.brokerAddrTable.put(brokerName, brokerData);
}
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
registerFirst = registerFirst || (null == oldAddr);
javaCopied!

if (null != topicConfigWrapper && MixAll.MASTER_ID == brokerId) {
    if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion()) || registerFirst) {
        ConcurrentMap<String, TopicConfig> tcTable = topicConfigWrapper.getTopicConfigTable();
        if (tcTable != null) {
            for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
                this.createAndUpdateQueueData(brokerName, entry.getValue());
            }
        }
    }
}
javaCopied!

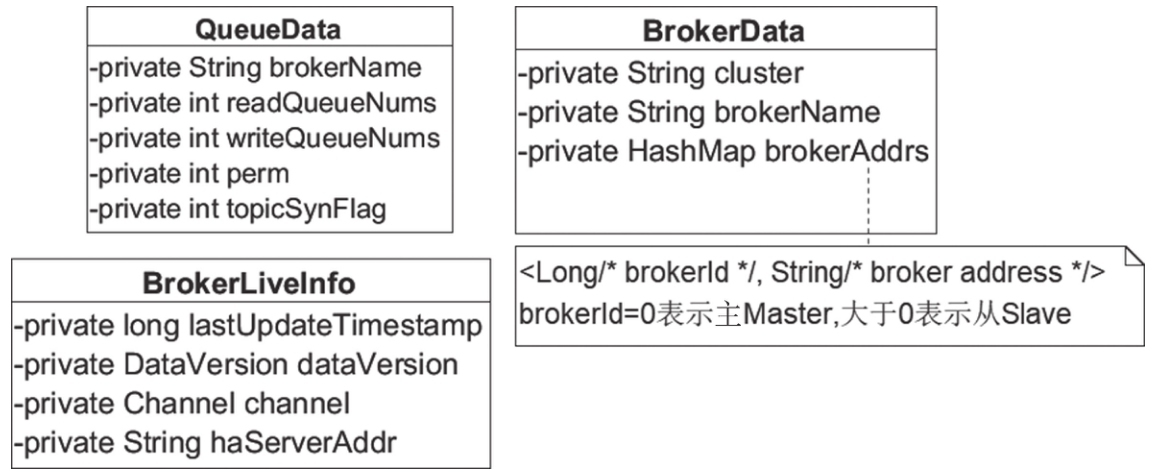

private void createAndUpdateQueueData(final String brokerName, final TopicConfig topicConfig) {
    QueueData queueData = new QueueData();
    queueData.setBrokerName(brokerName);
    queueData.setWriteQueueNums(topicConfig.getWriteQueueNums());
    queueData.setReadQueueNums(topicConfig.getReadQueueNums());
    queueData.setPerm(topicConfig.getPerm());
    queueData.setTopicSynFlag(topicConfig.getTopicSysFlag());

    List<QueueData> queueDataList = this.topicQueueTable.get(topicConfig.getTopicName());

    if (null == queueDataList) {
        queueDataList = new LinkedList<QueueData>();
        queueDataList.add(queueData);
        this.topicQueueTable.put(topicConfig.getTopicName(), queueDataList);
        log.info("new topic registered, {} {}", topicConfig.getTopicName(), queueData);
    } else {
        boolean addNewOne = true;
        Iterator<QueueData> it = queueDataList.iterator();

        while (it.hasNext()) {
            QueueData qd = it.next();
            if (qd.getBrokerName().equals(brokerName)) {
                if (qd.equals(queueData)) {
                    addNewOne = false;
                } else {
                    log.info("topic changed, {} OLD: {} NEW: {}", topicConfig.getTopicName(), qd, queueData);
                    it.remove();
                }
            }
        }

        if (addNewOne) {
            queueDataList.add(queueData);
        }
    }
}
javaCopied!

BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
    new BrokerLiveInfo(System.currentTimeMillis(),
        topicConfigWrapper.getDataVersion(),
        channel,
        haServerAddr));

if (null == prevBrokerLiveInfo) {
    log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
}
javaCopied!

if (filterServerList != null) {
    if (filterServerList.isEmpty()) {
        this.filterServerTable.remove(brokerAddr);
    } else {
        this.filterServerTable.put(brokerAddr, filterServerList);
    }
}

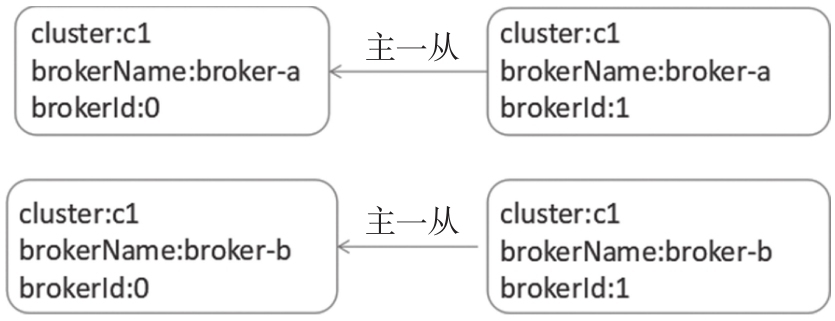

if (MixAll.MASTER_ID != brokerId) {
    String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
    if (masterAddr != null) {
        BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
        if (brokerLiveInfo != null) {
            result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
            result.setMasterAddr(masterAddr);
        }
    }
}
javaCopied!

public void scanNotActiveBroker() {
    Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();

    while (it.hasNext()) {
        Entry<String, BrokerLiveInfo> next = it.next();
        long last = next.getValue().getLastUpdateTimestamp();

        if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
            RemotingUtil.closeChannel(next.getValue().getChannel());
            it.remove();
            log.warn("The broker channel expired, {} {}ms", next.getKey(), BROKER_CHANNEL_EXPIRED_TIME);
            this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
        }
    }
}
javaCopied!

this.lock.writeLock().lockInterruptibly();
this.brokerLiveTable.remove(brokerAddrFound);
this.filterServerTable.remove(brokerAddrFound);
javaCopied!

String brokerNameFound = null;
boolean removeBrokerName = false;
Iterator<Entry<String, BrokerData>> itBrokerAddrTable = this.brokerAddrTable.entrySet().iterator();
while (itBrokerAddrTable.hasNext() && (null == brokerNameFound)) {
    BrokerData brokerData = itBrokerAddrTable.next().getValue();
    Iterator<Entry<Long, String>> it = brokerData.getBrokerAddrs().entrySet().iterator();
    while (it.hasNext()) {
        Entry<Long, String> entry = it.next();
        Long brokerId = entry.getKey();
        String brokerAddr = entry.getValue();
        if (brokerAddr.equals(brokerAddrFound)) {
            brokerNameFound = brokerData.getBrokerName();
            it.remove();
            log.info("remove brokerAddr[{}, {}] from brokerAddrTable, because channel destroyed", brokerId, brokerAddr);
            break;
        }
    }
    if (brokerData.getBrokerAddrs().isEmpty()) {
        removeBrokerName = true;
        itBrokerAddrTable.remove();
        log.info("remove brokerName[{}] from brokerAddrTable, because channel destroyed", brokerData.getBrokerName());
    }
}
javaCopied!

if (brokerNameFound != null && removeBrokerName) {
    Iterator<Entry<String, Set<String>>> it = this.clusterAddrTable.entrySet().iterator();
    while (it.hasNext()) {
        Entry<String, Set<String>> entry = it.next();
        String clusterName = entry.getKey();
        Set<String> brokerNames = entry.getValue();
        boolean removed = brokerNames.remove(brokerNameFound);
        if (removed) {
            log.info("remove brokerName[{}], clusterName[{}] from clusterAddrTable, because channel destroyed", brokerNameFound, clusterName);
            if (brokerNames.isEmpty()) {
                log.info("remove the clusterName[{}] from clusterAddrTable, because channel destroyed and no broker in this cluster", clusterName);
                it.remove();
            }
            break;
        }
    }
}
javaCopied!

if (removeBrokerName) {
    Iterator<Entry<String, List<QueueData>>> itTopicQueueTable = this.topicQueueTable.entrySet().iterator();
    while (itTopicQueueTable.hasNext()) {
        Entry<String, List<QueueData>> entry = itTopicQueueTable.next();
        String topic = entry.getKey();
        List<QueueData> queueDataList = entry.getValue();
        Iterator<QueueData> itQueueData = queueDataList.iterator();
        while (itQueueData.hasNext()) {
            QueueData queueData = itQueueData.next();
            if (queueData.getBrokerName().equals(brokerNameFound)) {
                itQueueData.remove();
                log.info("remove topic[{} {}], from topicQueueTable, because channel destroyed", topic, queueData);
            }
        }
        if (queueDataList.isEmpty()) {
            itTopicQueueTable.remove();
            log.info("remove topic[{}] all queue, from topicQueueTable, because channel destroyed", topic);
        }
    }
}
javaCopied!

finally {
    this.lock.writeLock().unlock();
}
javaCopied!

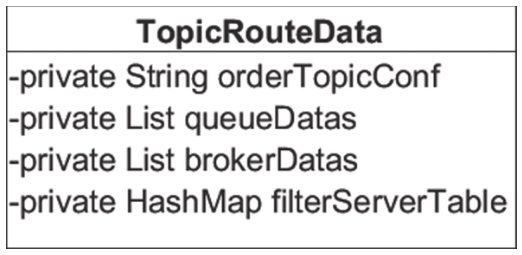

public RemotingCommand getRouteInfoByTopic(ChannelHandlerContext ctx, RemotingCommand request) throws RemotingCommandException {
    final RemotingCommand response = RemotingCommand.createResponseCommand(null);
    final GetRouteInfoRequestHeader requestHeader = (GetRouteInfoRequestHeader) request.decodeCommandCustomHeader(GetRouteInfoRequestHeader.class);

    TopicRouteData topicRouteData = this.namesrvController.getRouteInfoManager().pickupTopicRouteData(requestHeader.getTopic());

    if (topicRouteData != null) {
        if (this.namesrvController.getNamesrvConfig().isOrderMessageEnable()) {
            String orderTopicConf = this.namesrvController.getKvConfigManager()
                .getKVConfig(NamesrvUtil.NAMESPACE_ORDER_TOPIC_CONFIG, requestHeader.getTopic());
            topicRouteData.setOrderTopicConf(orderTopicConf);
        }

        byte[] content = topicRouteData.encode();
        response.setBody(content);
        response.setCode(ResponseCode.SUCCESS);
        response.setRemark(null);
        return response;
    }

    response.setCode(ResponseCode.TOPIC_NOT_EXIST);
    response.setRemark("No topic route info in name server for the topic: " + requestHeader.getTopic() + FAQUrl.suggestTodo(FAQUrl.APPLY_TOPIC_URL));
    return response;
}
javaCopied!
